Ecosystem Restoration of Brown Coal Open-pit Mines

authors: Pavel Pešout, Michal Porteš, Kateřina Černý Pixová, Markéta Hendrychová, Petr Kříž, David Lacina

Remediation and reclamation plans have been compiled for all large brown coal open-pits or quarries. The more progressive ones allow for leaving 10% of the area to spontaneous succession (Fig. 2). In the remaining area, costly technological (hydrological, agricultural or silvicultural) reclamation will take place. The Most-Ležáky and Chabařovice quarries have been remediated and reclaimed this way. In other ones (e.g. the Vršany and Czechoslovak Army Mine – CSA quarry) already a significant area of spoil heaps has been technologically reclaimed and new ones are planned.

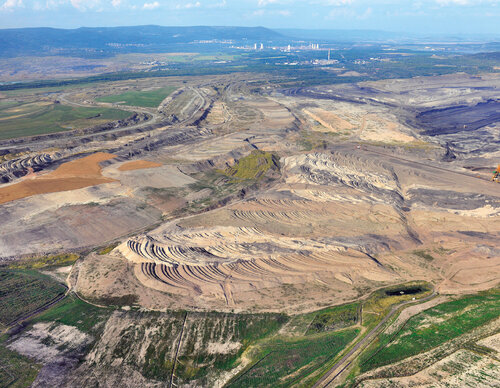

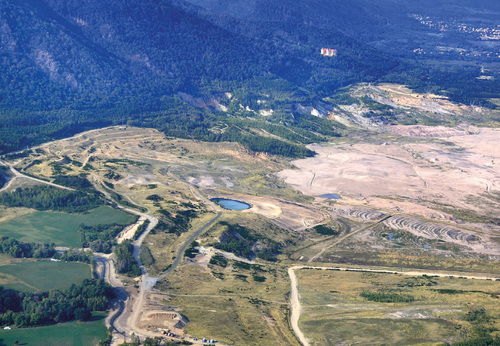

Figure 2 Brown coal mining in the Czechoslovak Army Mine (CSA quarry) will finish within five years. Large areas, particularly in the NW part of the Krušné hory/Ore Mountains foothills, have not yet been technologically reclaimed. In cooperation with the Czech University of Life Sciences Prague, the Nature Conservation Agency of the Czech Republic has delineated an extensive area which should be left to ecological restoration.   © Markéta Hendrychová

Scientific importance of post-mining area

Scientific research into non-reclaimed spoil heaps and active quarries in the past decade has revealed an extraordinary biological potential of these sites. The brown coal mining areas in the Ústí Region, often referred to as the lunar landscapes, are in fact very species-rich, which is especially true in the case of spoil heaps. The different succession stages on them provide valuable habitats for a range of endangered or extinct wild animal and plant species which are rapidly disappearing from the landscape or have already vanished. Surface mines are refugia for these species in the altered agricultural landscape (see e.g. Hendrychová et al. 2008, Vojar et al. 2012, 2018, Šálek 2012, Tichánek & Tropek 2016, Hendrychová & Bogusch 2016, Vicentiny et al. 2018, Beran et al. 2018a, 2018b).

The importance of post-mining areas for biodiversity can be well illustrated on birds of which we have detailed information. The Tawny pipit (Anthus campestris – see Box 1), Northern wheatear (Oenanthe oenanthe) and many other legally protected or rare bird species nest in the mining areas, often in high densities. The numbers of some species in the large quarries of the Most area even match estimations of nesting populations for the entire country. Other species nest strictly in large quarries only or have the majority of their population or the only large population there. In general, large quarries are important source populations for many farmland birds, which are among the most endangered and most rapidly declining groups of the vertebrates all over Europe.

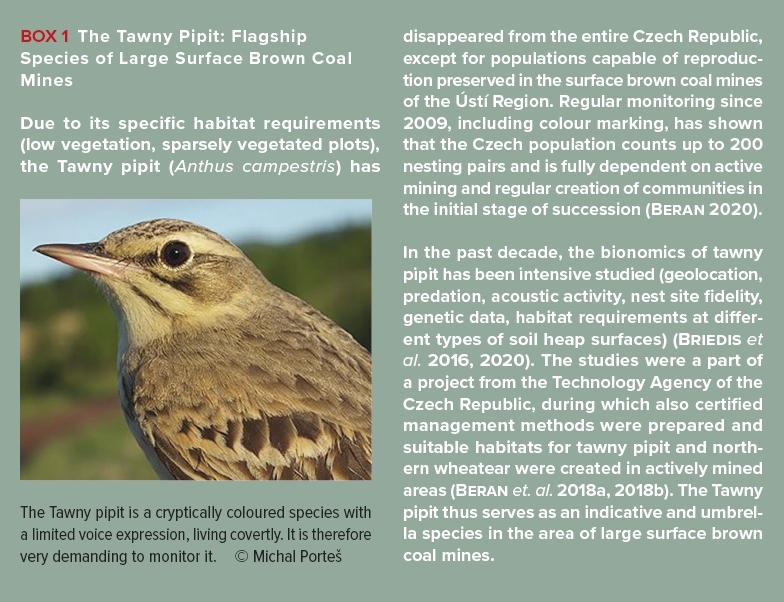

BOX 1 The Tawny Pipit: Flagship Species of Large Surface Brown Coal Mines

The main reasons why brown coal surface mines are so interesting to biota include:

• sufficiently large areas of sparsely vegetated or bare habitats;
• continuous formation of communities in primary succession stages;
• absence of large-scale use of chemicals and therewith sufficiency of food;
• bedrock variety creating a mosaic of substrates of different trophy, including phytotoxic spots where succession is blocked for a long time;
• different site ages; due to the long duration of mining, plots in various stages of succession can be found in particular parts of a quarry;
• waterlogging: thanks to the bedrock and various technological interventions in this type of the environment, a varied range of waterlogged plots are found there, from completely dry to arid through intermittently wet areas and shallow pools to larger and deeper water bodies.

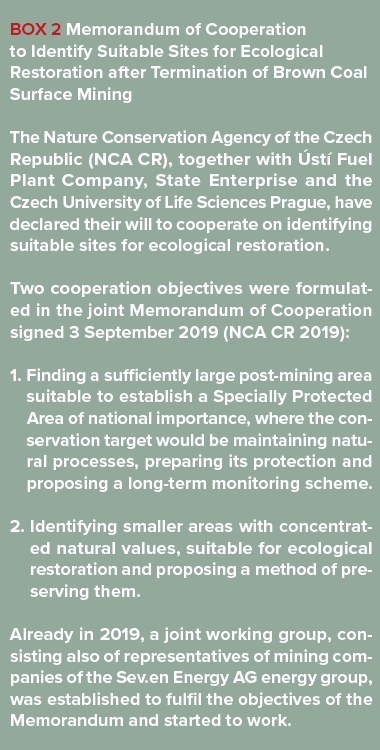

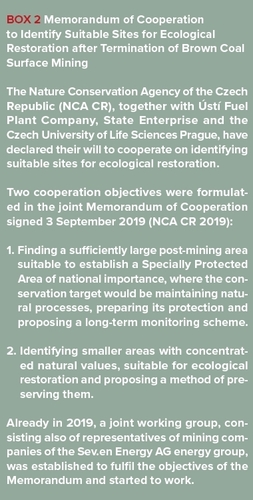

BOX 2 Memorandum of Cooperation to Identify Suitable Sites for Ecological Restoration after Termination of Brown Coal Surface Mining

Comparison of reclaimed plots and plots left to spontaneous development

The target of financially demanding technological reclamation is to create a cultural forest, agricultural land, a lake with a regulated water level, a recreation area, etc. (Pecharová et al. 2011). The result is an artificial landscape very poor in biodiversity. Including already inundated residual excavations (Lake Most and Lake Milada), non-productive habitats supporting a generally functional landscape and giving priority to ecological or nature conservation functions (tree rows, hedgerows, baulks, forest margins, spontaneously developing spots, sands, wetlands, etc.) cover less than 9% of reclaimed brown coal quarries and spoil heaps in the Most Basin (Hendrychová et al. 2020). However, reclaimed landscapes are often un- stable, requiring long-term or even permanent finances for maintenance.

Ecological restoration applying natural process- es allows for gradual colonisation of post-mining areas by pioneer species and subsequently further stages of succession, with which other ecological/functional groups of species (guilds) are associated. Since the onset of individual succession stages in time and space depends on local conditions (subsoil, trophy, slope, humidity, etc.), which are very variable in a post-mining area (see above), a diverse mosaic is created, from areas lacking vegetation or partly covered by herbs or shrubs to completely closed habitats with a developed shrub layer and scattered trees. Moreover, many ecotones are found in such environments. Early succession stages in cultural landscapes attract, for example, some pollinating insects (Tscharntke et al. 2002). An important feature of ecological restoration is its low cost (see Box 3).

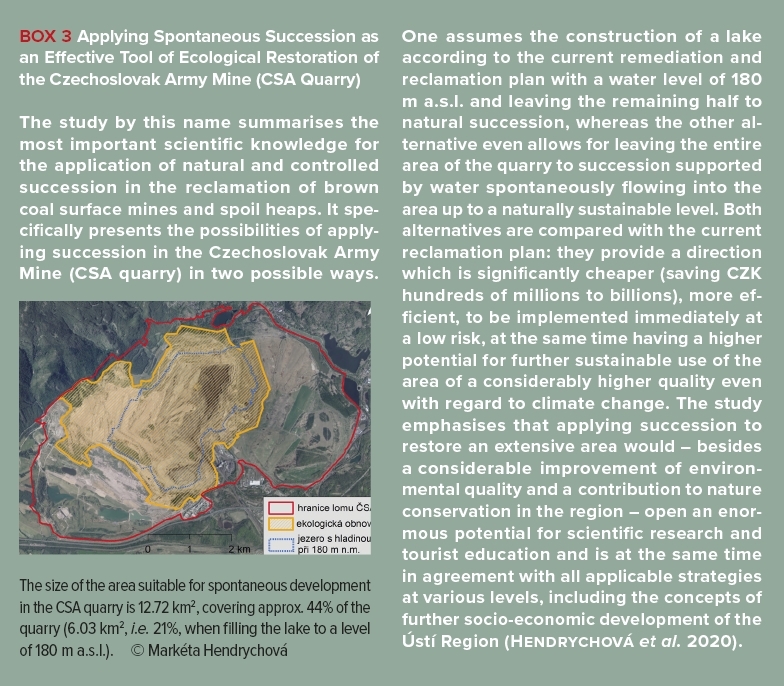

BOX 3 Applying Spontaneous Succession as an Effective Tool of Ecological Restoration of the Czechoslovak Army Mine (CSA Quarry)

The size of the area suitable for spontaneous development in the CSA quarry is 12.72 km², covering approx. 44% of the quarry (6.03 km², i.e. 21%, when filling the lake to a level of 180 m a.s.l.).   © Markéta Hendrychová

Today we have the opportunity to assess and compare areas left to spontaneous development with technologically reclaimed ones at many sites. Numerous surveys have repeatedly confirmed that ecological restoration allows for development of extraordinarily valuable habitats inhabited by endangered species at incomparably lower creation and maintenance costs (Bejček & Tyrner 1980, Hodačová & Prach 2003, Hendrychová 2008, Tropek & Řehounek 2011, Jongepierová et al. 2018). From the pedogenetic point of view, non-reclaimed parts of spoil heaps are not far behind in qualitative features compared to the technologically created anthrosoils. Some spontaneously created woodlands show a higher biological soil activity and more efficient decomposition of dead organic matter, while they can also produce more timber, usually around the 25^th year of development (Frouz et al. 2008, 2015).

Looking for the target use of large quarries

The completed technological, hydrological, silvicultural and agricultural reclamations (e.g. Most-Ležáky, now Lake Most) have raised the question of their economic effectivity. It is not just that their implementation is extremely expensive (paid by the mining company), but also its subsequent maintenance is costly (paid by the State). For example in the case of the Most excavation, annual maintenance costs amount to an average of CZK 15 million (EUR 0.6 million), of which raising the water level fallen by evaporation costs CZK 8–10 million a year (EUR 0.3–0.4 million). Future revenues from recreation and sales of land for economic use and develop- ment can be expected, but even though many years have passed since the lake was created, a solution for cost-effective use has still been sought. Lake Milada is in a similar situation. There, an architectural-urbanistic-landscaping competition has been started. This experience logically asks for a more sustainable solution for the remaining quarries.

In 2017, the Government of the Czech Republic stated that no target state has been determined for the currently intensively mined brown coal areas, where extensive water bodies are planned according to the current remediation and reclamation plans. It has therefore imposed to explore possibilities of effective exploitation, taking into account operation costs and simultaneously the revenues from their potential development.

Lake and yacht landscape?

In visualisations, the new post-mining ‘lake landscape’ looks fascinating. It is however questionable whether spontaneous inundation of the excavations or pumping water into them from nearby water pipes after mining and the sub- sequent control of the water level is realistic.

Current studies² show that it is hard to estab- lish a long-term stabilised lake water level when only inflow from the respective catchment is considered. Moreover, just a small change in the flow rate may cause considerable deviations in level in the future. The assessment included a modelling of flow rates, precipitation and temperature³ for three time levels: the present, the year 2050 and the year 2100. For the initial filling of the lakes, the Ohře River (the Bílina stream was excluded for its insufficient water quality and quantity) was considered as the water source, provided a minimum residual flow rate and water withdrawal downstream is guaranteed. It was demonstrated that this source for the initial filling of the lakes has a sufficient capacity and is reliable. The time (years or decades) it will take to fill the lakes will depend on e.g. the time schedule of mining termination, i.e. whether to fill the lakes successively or parallel to the mining.

Controlling the water level achieved by initial filling, without the need of further water pumping (e.g. from the Ohře River) to compensate for evaporation, was shown to be sustainable in the case of the lakes considered at the sites of Bílina and Libouš (possibly connected with the Nechranice water works). Also the level of Lake Milada, which is supplied with groundwater from overflow wells, should be sustainable. The study assessed the lake considered in the CSA as unusable for water management, as it would only be a part of a water management system with demands for controlling its own balance (compensation for evaporation). For the hydrologically reclaimed site of Most it was confirmed that the water level is unsustainable under the current climate conditions. The current water level will have to be maintained by pumping water there also in the future⁴. Neither for the lake considered at the site of Vršany a solution for a stabilised water level was found in any of the examined ways.

Placing solar power plants in post-mining areas?

Lately, in addition to hydrological reclamation, efforts have been made to use post-mining areas for energetic and other purposes in order to increase the proportion of carbon-free energy sources. In 2020, the potential of reclaimed areas was assessed, including the water level of lakes considered to be used for installing photovoltaic power plants (PVP). It was verified that building these facilities in areas of future reclaimed areas may provide a very significant power potential (maximum production estimated at 4.0–6.8 TWh/yr). Specifically in the CSA, the estimated PVP capacity is 0.66–1.04 GW5.

Also the use of these areas for building pumped storage power plants is being discussed. Although the economic assessment is positive in the case of the CSA and Lake Milada, it is necessary to carry out a nature and the landscape impact assessment before a decision is made to work out these plans seriously.

Ecological restoration is a solution

Although a wider application of ecological restoration has repeatedly been proposed by the Nature Conservation Agency of the Czech Republic (NCA CR), scientific institutes and non-governmental organisations, these proposals have mostly only been included in strategic documents. The Implementation Plan of the Strategic Framework Czech Republic 2030 states the necessity to protect near-natural restoration sites in disturbed areas. This is clari- fied in the National Biodiversity Strategy of the Czech Republic 2016–2025, which states that it is very appropriate to leave strongly disturbed or completely destroyed ecosystems (e.g. surface mining areas) to spontaneous succession combined with suitable management interven- tions. Near-natural restoration is also mentioned in regional strategies of the Ústí Region.

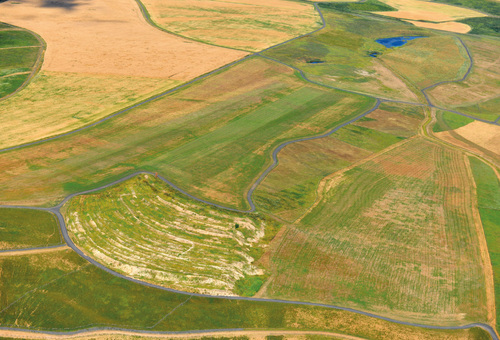

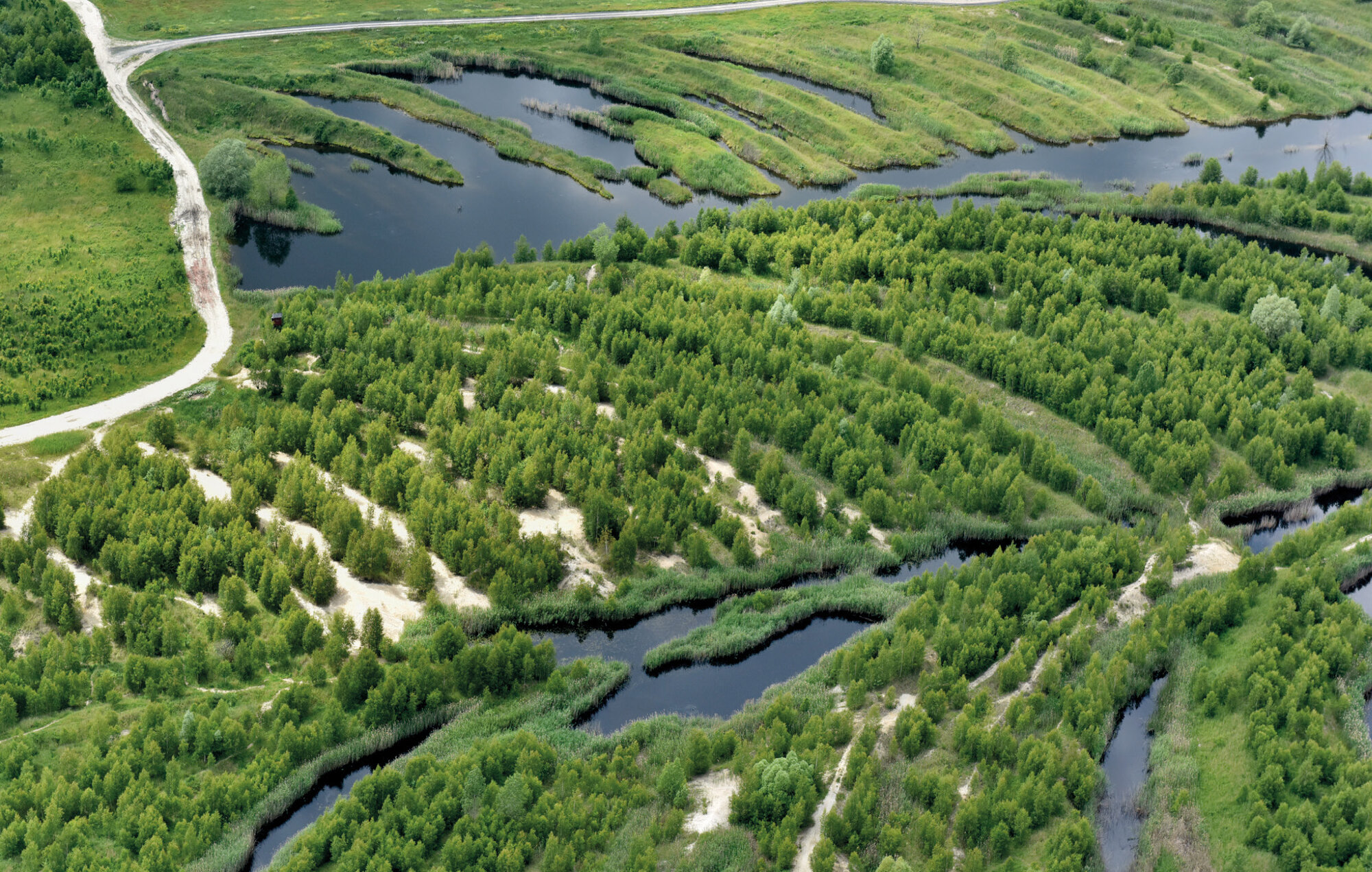

Figure 3 Some parts are being left to spontaneous succession in reclamation, but these are only small areas. The photo shows an area left to natural restoration at the Pokrok spoil heap.   © Markéta Hendrychová

Figure 4 Komořany Lake, which used to cover the site of today’s Czechoslovak Army Mine (CSA quarry), started to be drained systematically in 1835 (Pecharová et al. 2011). This picture postcard of the Jezeří Castle shows the state of Komořany Lake around 1880.   Source: Archive of the Regional Museum in Most.

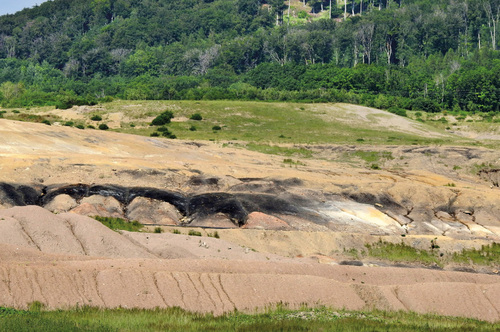

Figure 5 Habitats with blocked succession are the most interesting from the nature conservation point of view. They will long host rare early-succession species requiring bare substrates.   © Markéta Hendrychová

In the planning and implementation of specific practical measures, ecological restoration has so far only been applied on a small scale, experimentally. In 2018, the NCA CR therefore started to negotiate actively with the Ústí Fuel Plant Company, State Enterprise and Sev.en Energy AG energy group about delimiting larger areas for spontaneous development in the CSA and Vršany quarries. In the end, further steps were agreed and decided on (see Box 2).



The first aim of the agreement was to select sites extraordinarily valuable for biodiversity and to exclude them temporarily from technological reclamation plans. As agreed, the NCA CR will prepare proposals to register them as Significant Landscape Elements. In updated remediation and reclamation plans, the mentioned sites should then be destined for ecological restoration or special restoration management (blocking certain succession stages).

Another objective is to determine an extensive area affected by mining (5–10 km² in size) to be left to spontaneous development and pursuant to the national legislation to be designated a Specially Protected Area where the specific subject of protection will be the protection of natural processes. For several reasons, an area in the CSA was identified as the most appropriate. First of all, still large areas with ongoing spontaneous succession escaped from technological reclamation and possessing high biodiversity and inhabited by endangered species are found there (see Fig. 1). An important reason is the fact that most of the land in this quarry is owned by the State, so no problems with ownership relations will arise. A third reason is the low percentage of temporarily excluded agricultural and forest land, because Lake Komořany covers most of the area (see Fig. 6). Of course also the soon expected termination of mining in the CSA was taken into consideration. The NCA CR therefore requested the Czech University of Life Sciences Prague to pre- pare a feasibility study for the CSA, which confirmed the feasibility and high efficiency of ecological restoration there (see Box 3). Its conclusions are transferrable to other sites, e.g. the Vršany quarry.

Figure 6 In the Vršany quarry, areas have been selected which should not be technologically reclaimed but left to spontaneous development or specifically managed.   © Markéta Hendrychová

Background documents elaborated by the NCA CR in cooperation with partners have been incorporated into a document submitted to the Czech Republic Government session by the Ministry of the Environment of the Czech Republic. After decades of debate, ecological restoration has thus become an equivalent restoration option for extensive post-mining areas. It offers the Czech Republic an opportunity to implement its commitments under the EU Biodiversity Strategy for 2030 (EC 2020, Pešout 2020) and an appropriate contribution to the UN Decade on Ecosystem Restoration, proclaimed in 2019 (UN 2019, Plesník 2019). The NCA CR now has to define the extent of the territory to be restored by spontaneous processes more precisely, while taking into account other interests and conditions, in collaboration with state enterprises Ústí Fuel Plant and Ohře River Basin, mining company Sev.en Energy AG and the relevant municipalities.    ■
